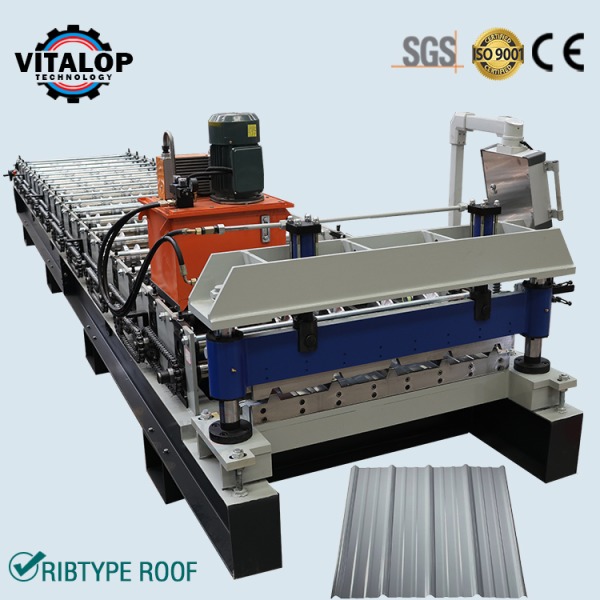

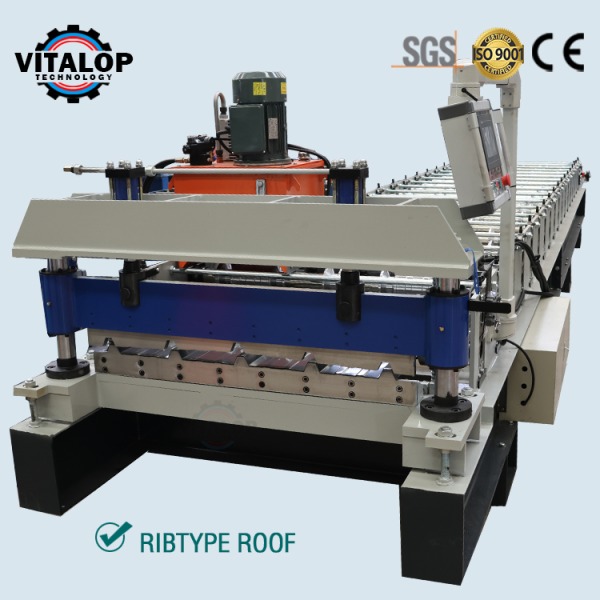

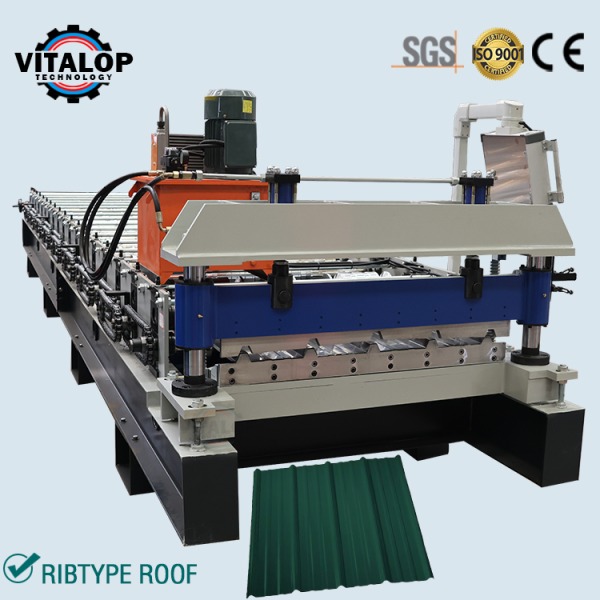

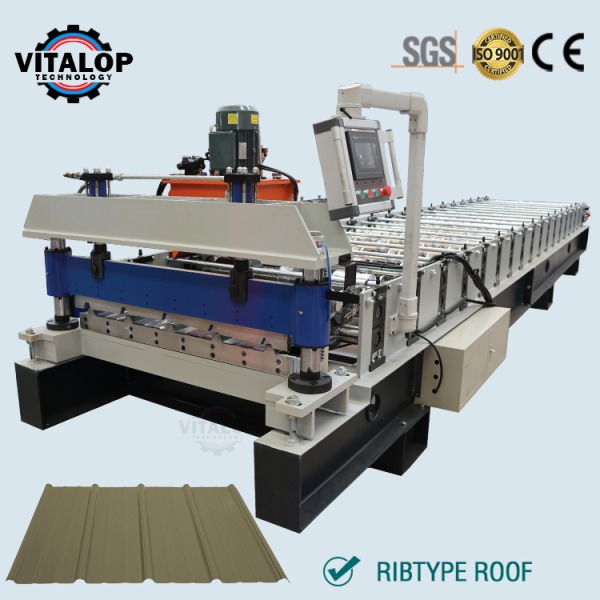

Philippines longspan rib type roofing machine

Rib type roofing machine makes 5 ribs roof sheet with 1220mm steel coil feeding width. Which is popular in Philippines. The raw material can be prepainted steel coil, galvanized steel coil, aluminum coil… Metal roofing machine work speed max can reach 25m/min. Suitable for raw material thickness from 0.30mm to 0.80mm. Rib type roofing width 1030mm.

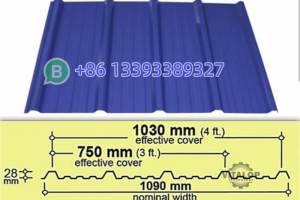

Longspan rib type roofing sheet making machines profile drawing size picture:

Longspan rib type roofing roll forming machine technical parameters:

Forming steps	15 stations for ribtype sheet
Shaft diameter	70mm Solid
Machine frame	350# H steel welded
Roller material	45# steel, surface hard chromium plating.
Shaft material	High quality 45# steel
Work speed	10-25m/min
Transport	By 1.2 inch single chains
Power of main machine	5.5 kw
Type of cutting	Hydraulic
Cutting tolerance	±1mm

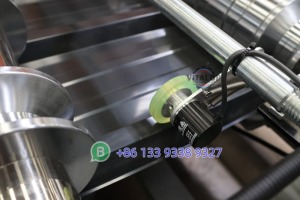

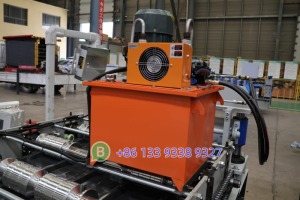

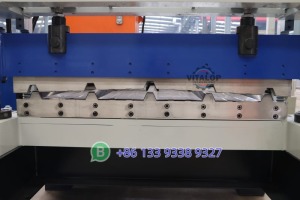

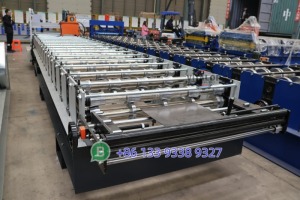

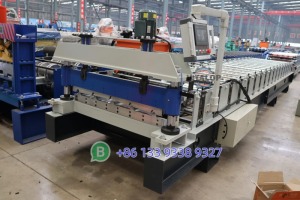

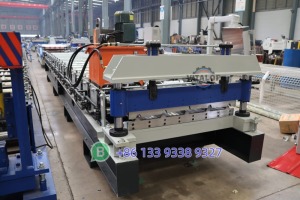

Longspan rib type roofing sheet machine details pictures:

We can paint machine to different colors according to client requirements.

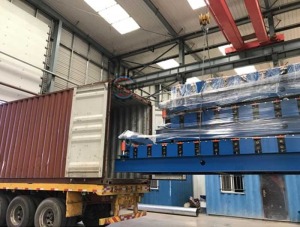

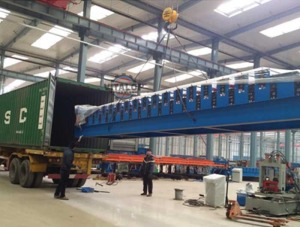

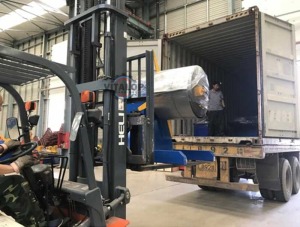

Packing & Sea shipping :

Machine is nude loaded into 20 or 40 feet container.

Installation and training:
a.If buyers visit our factory and check the rib type roof roll forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.

If you have any needs for our longsapn ribtype roof sheet making machine. Please not hesitate to contact with us!! We can offer you good quality roof sheet making machines at reasonable price!!!
