Double rib type roof sheet making machine
Model: Double layer roll forming machine
Develivery time:25-35 days
Min.Order Quantity:1 Set
Port:Tianjin,China
Payment Terms:30%T/T,70% T/T
Email: jeff@vitalopmachinery.com
- Description
- Inquiry
Description
Double rib type roof sheet making machine
Double rib type roof sheet making machine durability: The machines feature a robust structure (often using H-beams and quality steel components) for a long service life.

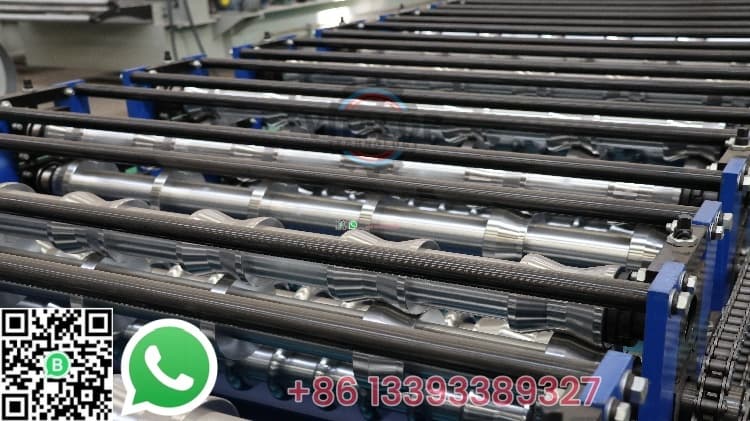

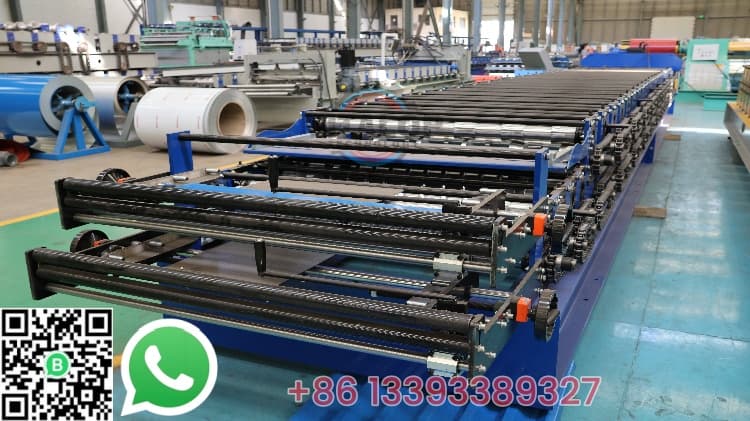

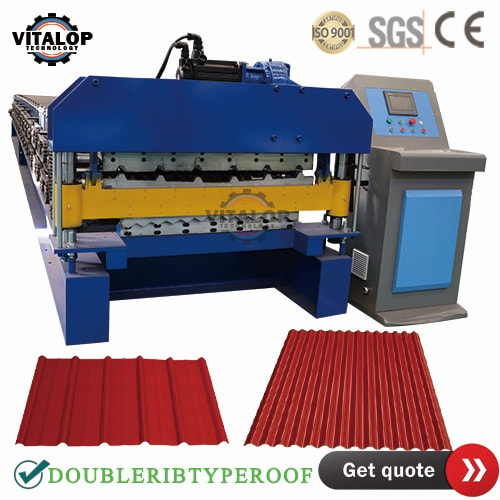

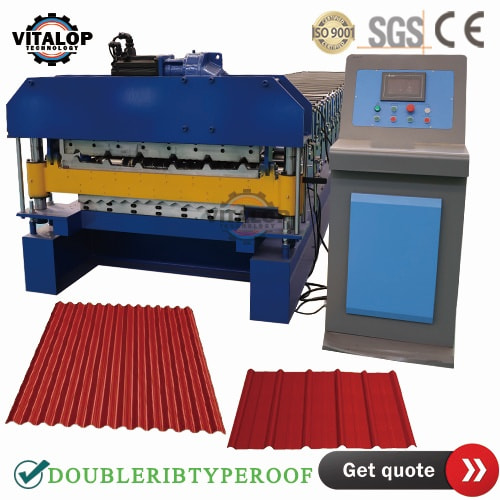

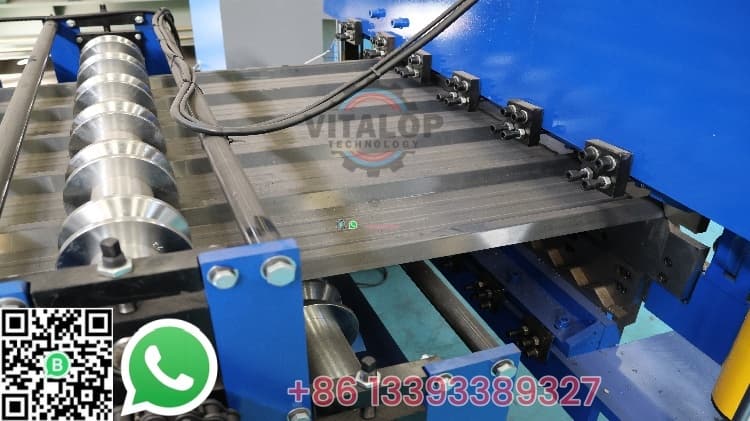

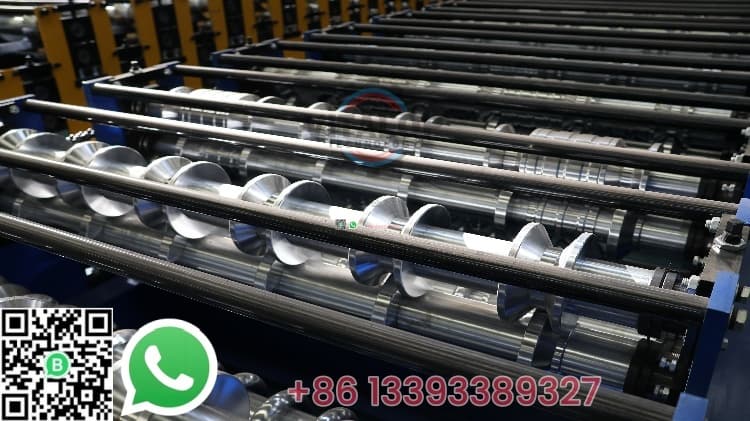

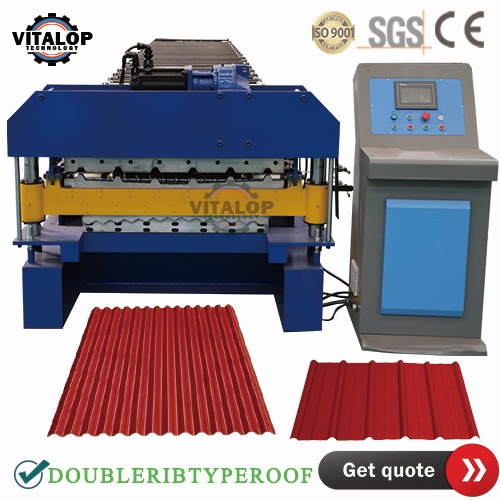

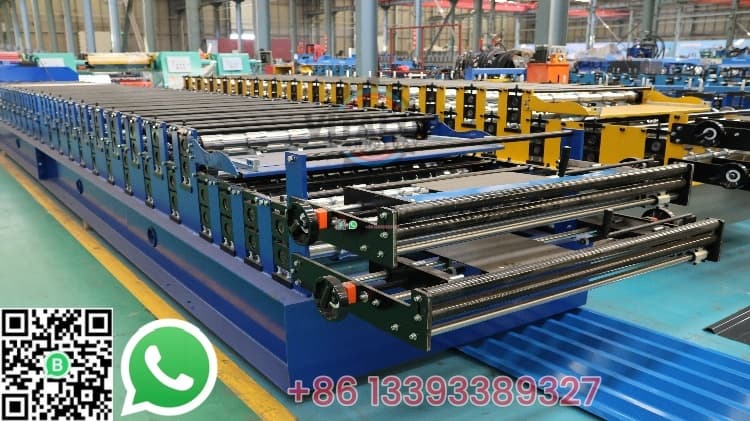

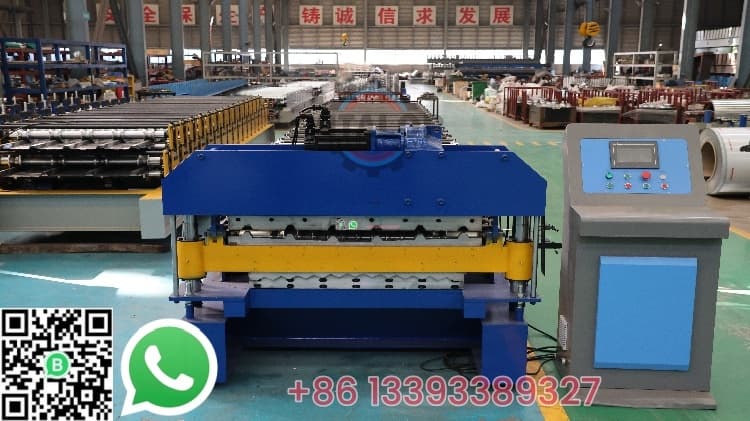

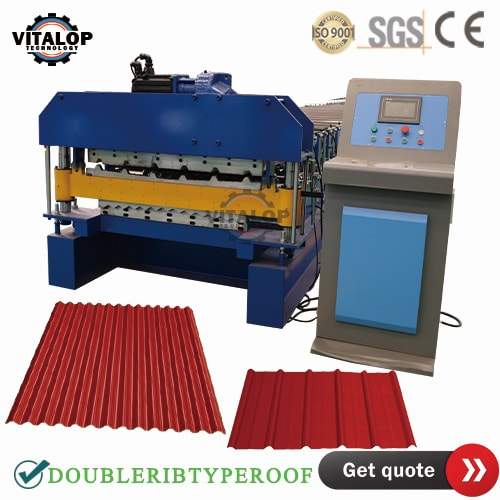

Double rib type roof sheet making machine reference image:
Double rib type roof sheet making machine Process flow:
Double rib type roof sheet making machine specification:
| double rib type roof sheet making machine | ||
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 13+14Rows |
| 3 | Dimensions | 6.4*1.55*1.8m |
| 4 | Motor Power | 4Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4500kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |

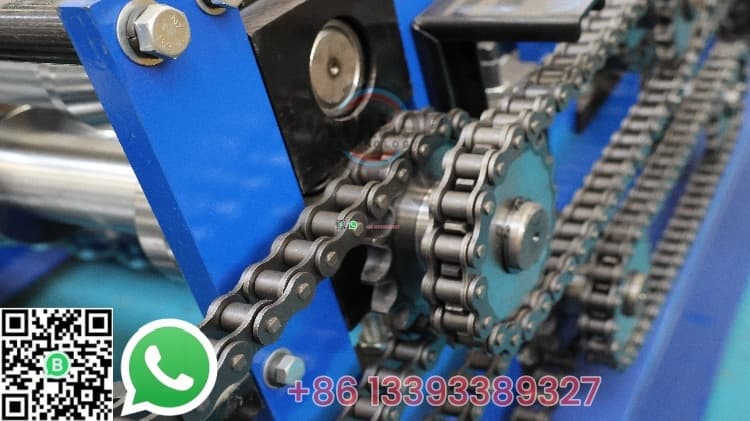

| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
Installation and training:
a .If buyers visit our factory and check the rib type roof roll forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
