Double deck roofing sheet roll forming machine

Double deck roofing sheet roll forming machine

Model:double deck roofing sheet roll forming machine

Develivery time:25-35 days

Min.Order Quantity:1 Set

Port:Tianjin,China
Payment Terms:30%T/T,70% T/T

Mob/Whatsapp:+86-13393389327

Email: jeff@vitalopmachinery.com

Description
Inquiry

Description

Introduction to Double-Layer Roof Panel Roll Forming Machines

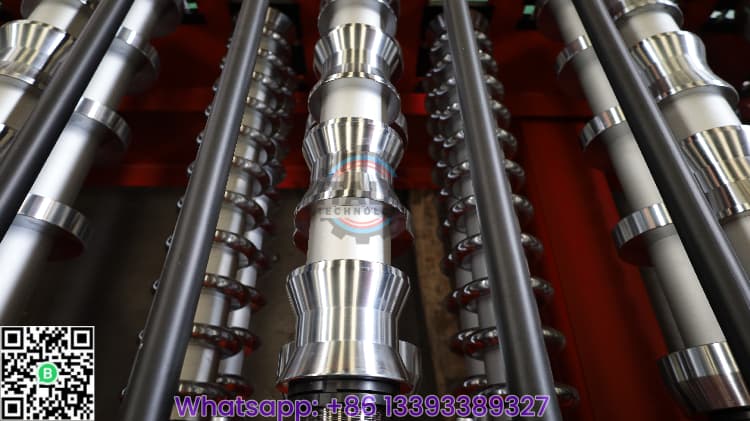

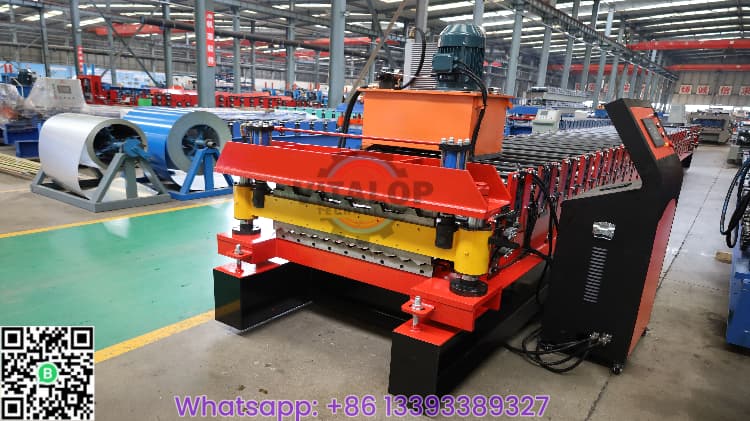

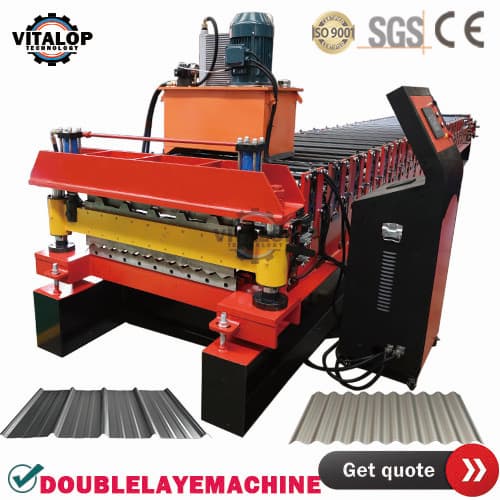

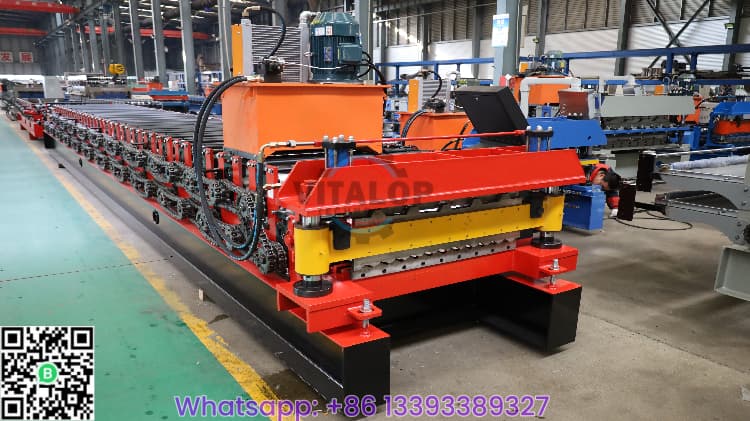

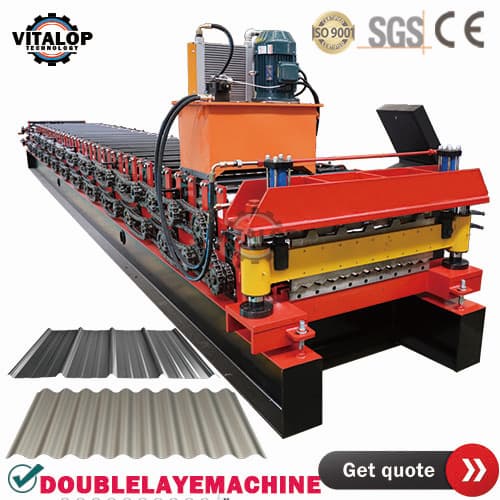

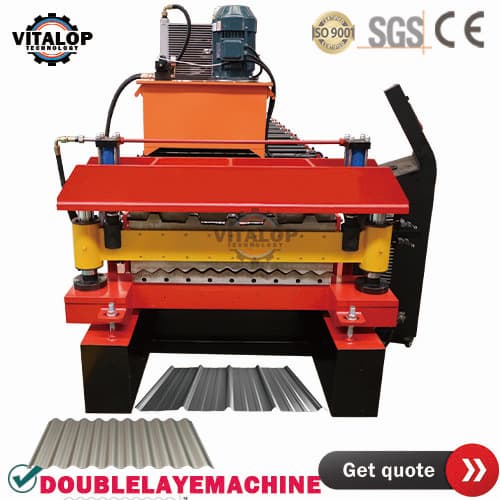

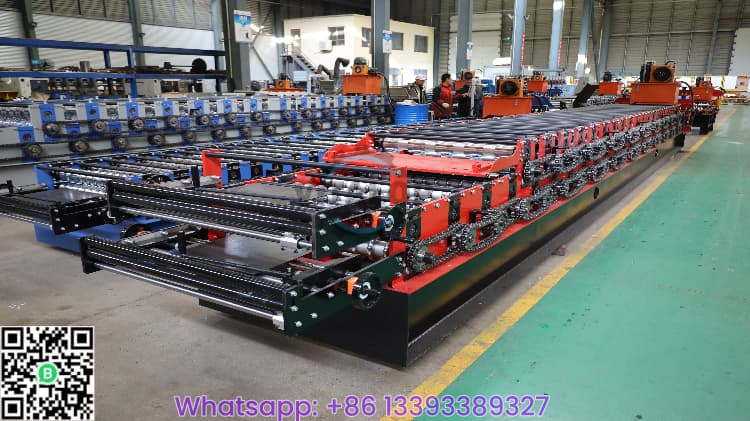

Double deck roofing sheet roll forming machine reference image:

double deck roofing sheet roll forming machine

double deck roofing sheet roll forming machine Process flow:

double deck roofing sheet roll forming machine specification:

double deck roofing sheet roll forming machine specification:
1	Support Structure	350H Beams (Q235 standard)
2	Middle Plate Thickness	18mm (Q235 standard)
3	Number Of Row Forming Rollers	15 Rows
4	Roller Material	High Quality 45# Steel, Surface Hard Chromium Plating
5	Shaft Material	High Quality 45# Steel
6	Shaft Diameter	70mm Solid Shaft
7	Cutting Blade Material	Cr12 Mov (Quenching Treatment 58℃-60℃)
8	Control System	Taiwan Delta PLC, Touch Screen And Frequency Converter
9	Work Speed	10-25m/min, Adjustable
10	Transmission	By 1.2 inch chains
11	Main Motor Power	5.5KW
12	Hydraulic pump station	4Kw Shanghai Lichao Brand with cooling fan
13	Type of Cutting	4 Hydraulic Pillar Cutting
14	Cutting Tolerance	±1mm
15	Voltage	380V/50HZ/3Phases Or Customized

double deck roofing sheet roll forming machine is professional roll forming machines for metal roof panels with high precision and speed. Durable, automatic, and efficient roof roll forming machines for global customers. Top Quality Machines。Customizable Options。Competitive Pricing。Reliable Performance。
