Rib type roofing sheet making machine
Model: Rib type roofing sheet machine
Develivery time:25-35 days
Email: jeff@vitalopmachinery.com
- Description
- Inquiry
Description

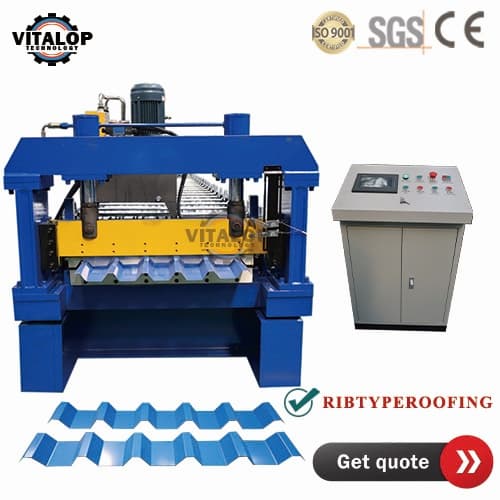

Rib type roofing sheet making machine
This rib type roofing sheet making machine can produce six-ribbed trapezoidal roof panels, a popular feature in the Philippines. This metal roof panel forming machine is highly efficient, easy to operate, and convenient to maintain.

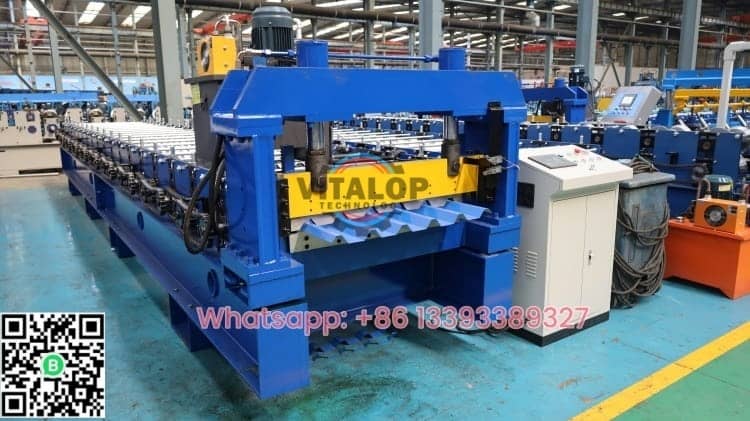

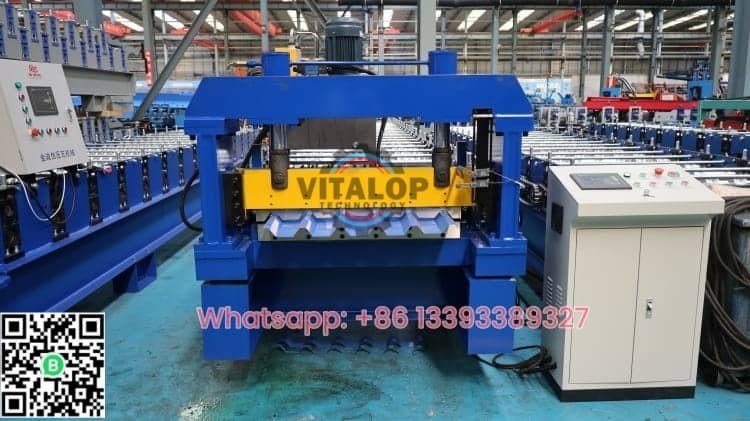

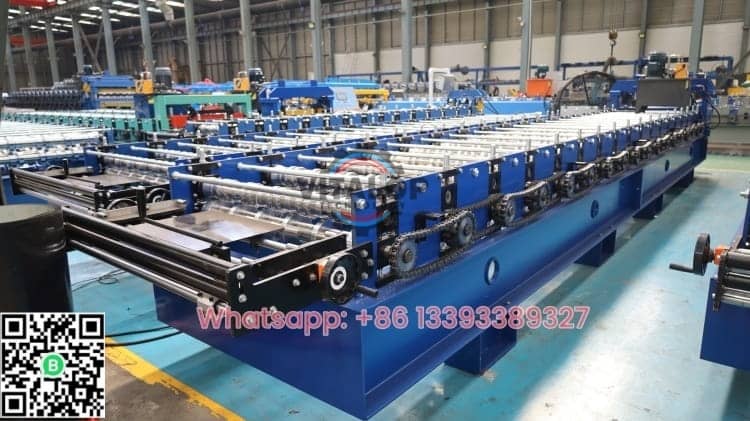

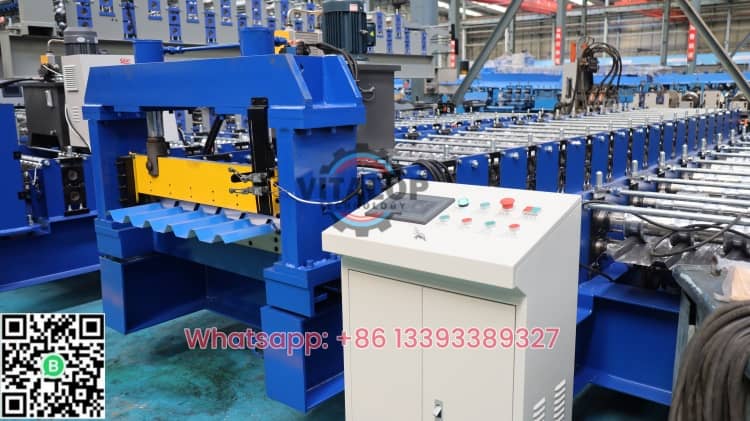

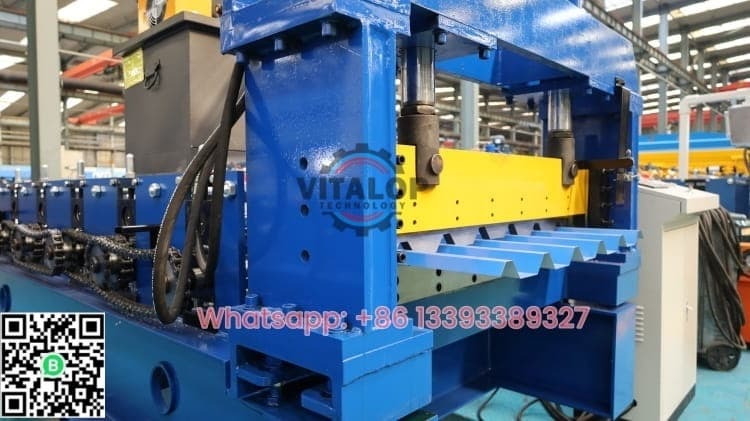

Rib roof panel forming machine details picture：
Equipment parameters of Rib type roofing sheet making machine：
| Rib type roofing sheet making machine | ||
| 1 | Support Structure | 350H Beams (Q235 standard) |
| 2 | Middle Plate Thickness | 18mm (Q235 standard) |
| 3 | Number Of Row Forming Rollers | 17 Rows |
| 4 | Roller Material | High Quality 45# Steel, Surface Hard Chromium Plating |
| 5 | Shaft Material | High Quality 45# Steel |
| 6 | Shaft Diameter | 70mm Solid Shaft |
| 7 | Cutting Blade Material | Cr12 Mov (Quenching Treatment 58℃-60℃) |
| 8 | Control System | Taiwan Delta PLC, Touch Screen And Frequency Converter |
| 9 | Work Speed | 10-25m/min, Adjustable |
| 10 | Transmission | By 1.2 inch chains |
| 11 | Main Motor Power | 5.5KW Shanghai Lichao Brand |

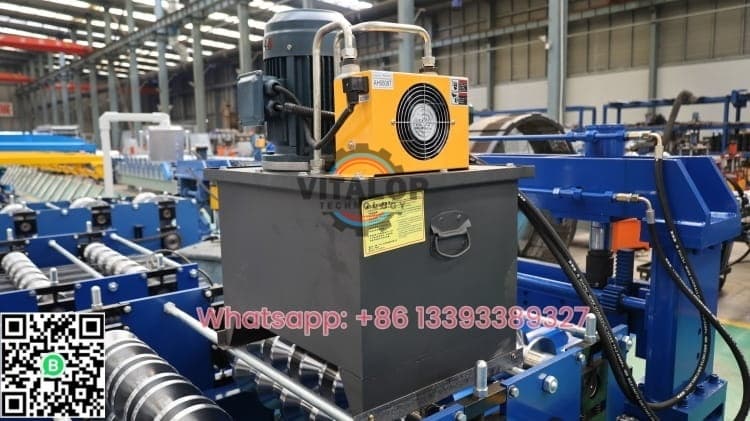

| 12 | Hydraulic pump station | 4Kw Shanghai Lichao Brand with cooling fan |

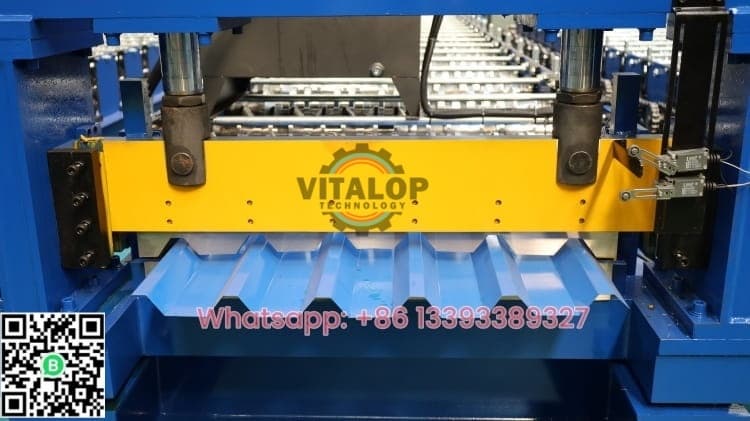

| 13 | Type of Cutting | 4 Hydraulic Pillar Cutting |
| 14 | Cutting Tolerance | ±1mm |
| 15 | Voltage | 380V/50HZ/3Phases Or Customized |
| 16 | Dimension | L7000mm*W1600mm*H1600mm |
Installation and training:
a.If buyers visit our factory and check the rib type roof roll forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
If you have any needs for our longspan ribtype roof sheet making machine. Please not hesitate to contact with us!! We can offer you good quality roof sheet making machines at reasonable price!!!
