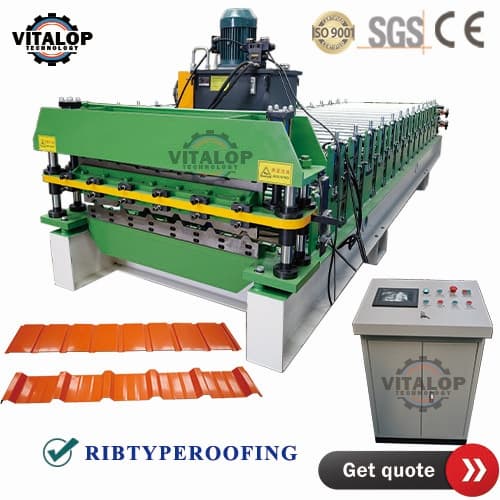

Double-ribbed roof sheet making machine

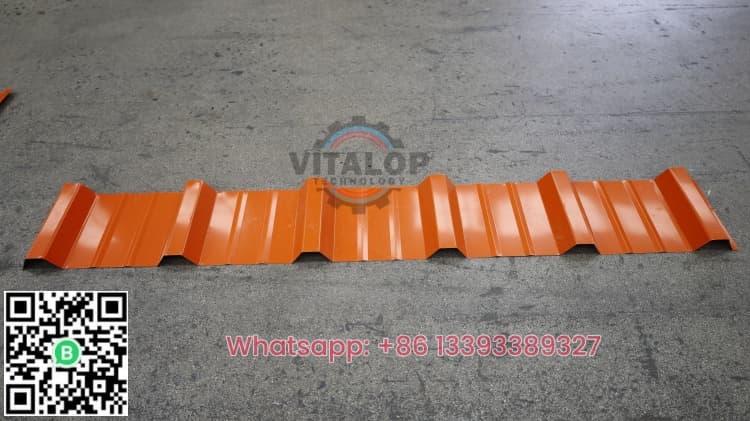

The double-rib roof panel making machine can produce two different types of panels with the same feed width, and can quickly switch between different formats, with high efficiency and high production speed.

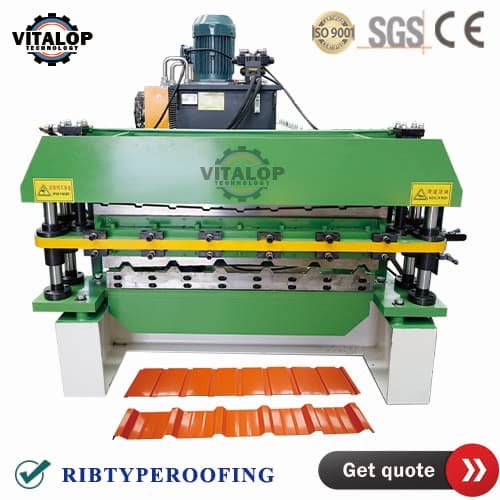

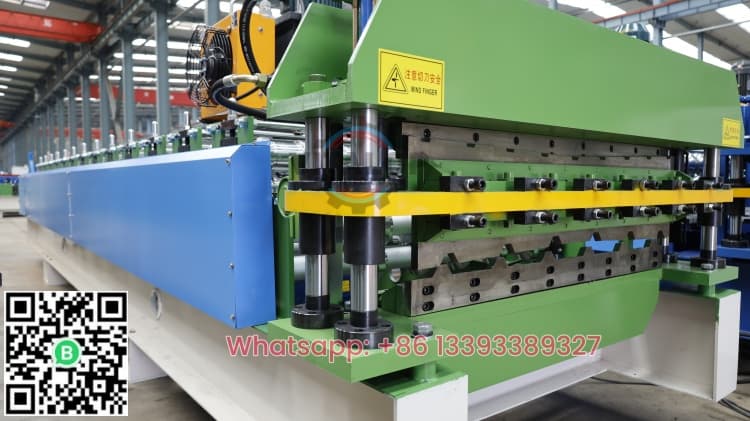

Double-rib roof panel making machine prototype：

Production process diagram：

Production process diagram

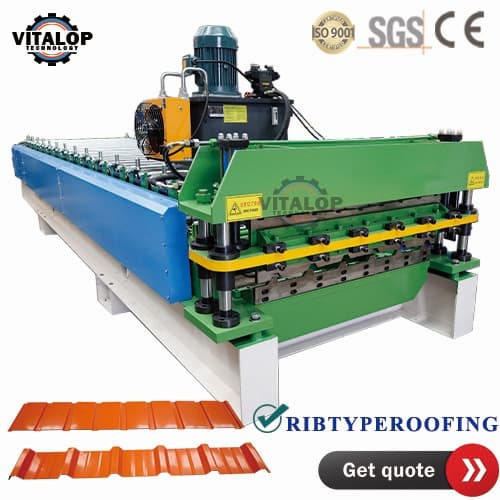

Double-ribbed roof sheet making machine
1	Support Structure	350H Beams (Q235 standard)
2	Middle Plate Thickness	18mm (Q235 standard)
3	Number Of Row Forming Rollers	15 Rows
4	Roller Material	High Quality 45# Steel, Surface Hard Chromium Plating
5	Shaft Material	High Quality 45# Steel
6	Shaft Diameter	70mm Solid Shaft
7	Cutting Blade Material	Cr12 Mov (Quenching Treatment 58℃-60℃)
8	Control System	Taiwan Delta PLC, Touch Screen And Frequency Converter
9	Work Speed	10-25m/min, Adjustable
10	Transmission	By 1.2 inch chains
11	Main Motor Power	5.5KW
12	Hydraulic pump station	4Kw Shanghai Lichao Brand with cooling fan
13	Type of Cutting	4 Hydraulic Pillar Cutting
14	Cutting Tolerance	±1mm
15	Voltage	380V/50HZ/3Phases Or Customized

If you have any needs for our longspan ribtype roof sheet making machine. Please not hesitate to contact with us!! We can offer you good quality roof sheet making machines at reasonable price!!!

We can paint machine to different colors according to client requirements.
