Description

Galvanized tile roof crimping machine

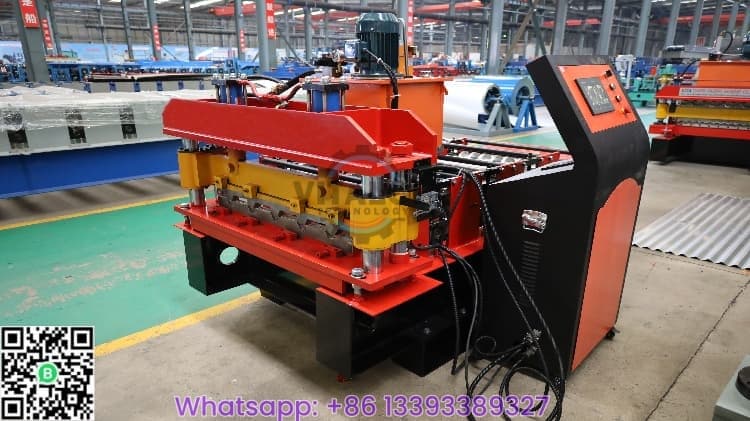

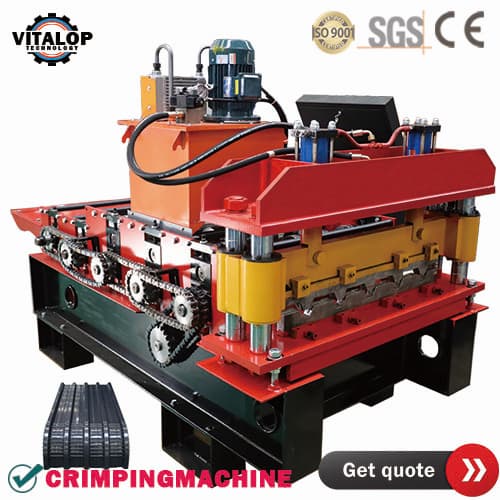

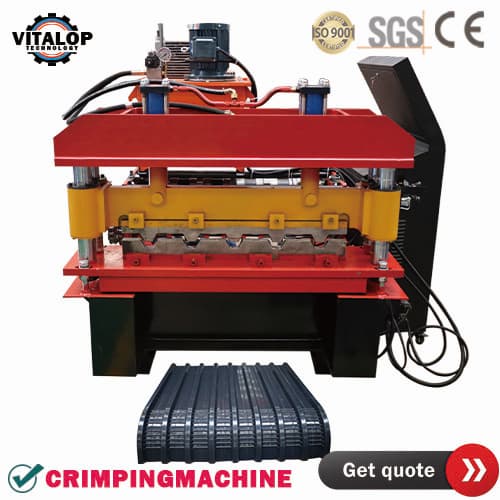

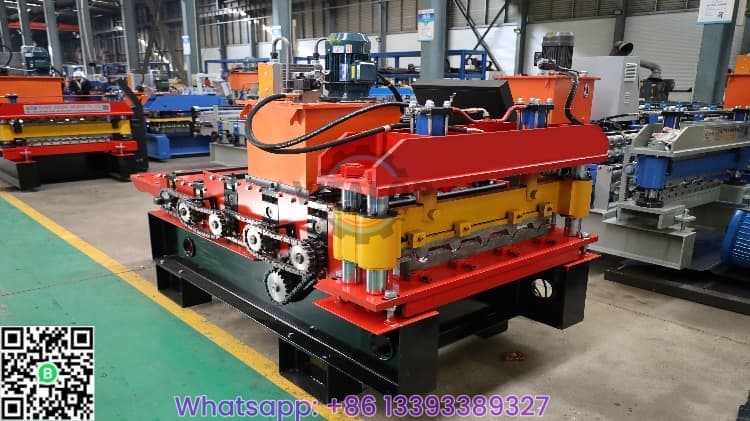

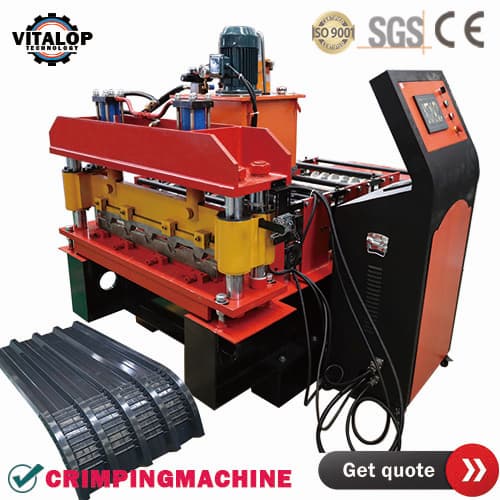

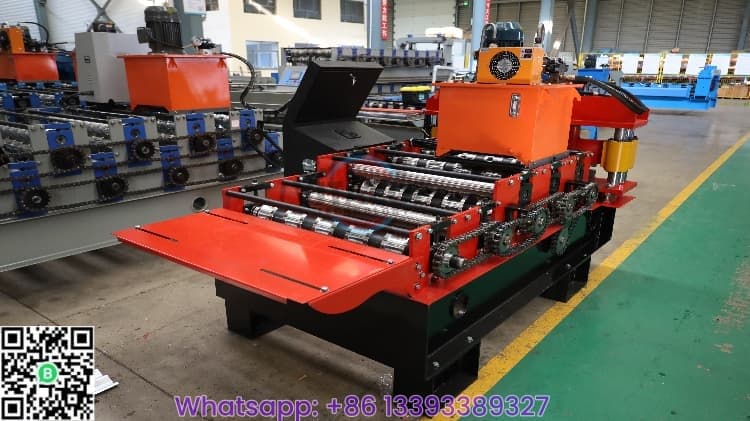

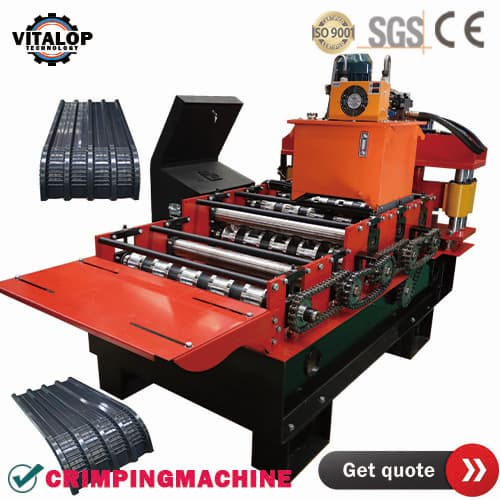

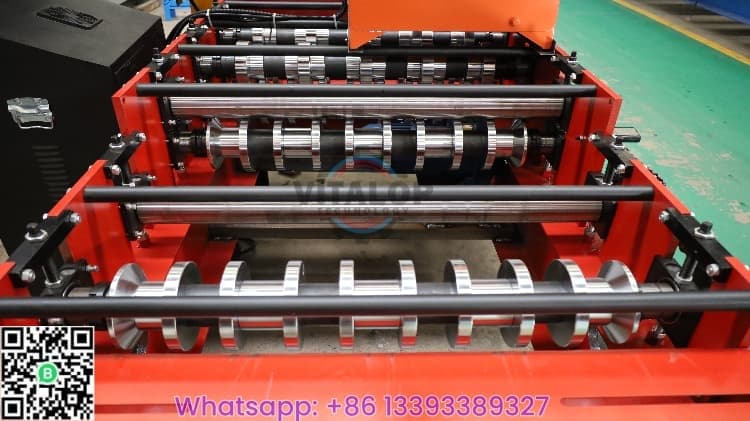

galvanized tile roof crimping machine reference image:

galvanized tile roof crimping machine

galvanized tile roof crimping machine specification:

galvanized tile roof crimping machine specification
Suitable to process Color alu-zinc steel coil
2 Roller 3Rows
3 Dimensions 2.6*1.5*1.6m
4 Motor Power 3Kw
5 Pump Station Motor 3Kw.Lichao Brand
6 Thickness of the plate 0.3-0.8mm
7 Productivity 3-5m/min
8 Material of the cutting blade Cr12,Quenched treatment 58℃-60℃
9 Diameter of the roller Φ70mm
10 Weight About 2500kgs
11 Main structure of the machine 350H beams
12 Processing precision Within 1.0mm
13 Side panel of machine 16mm
14 Chain Wheel and Cycle Chain 1 Inch
15 Voltage 380V 50Hz 3phases or as customer’s need
16 Control system PLC control (Delta)
17 Frequency system Delta

Installation and training:
a .If buyers visit our factory and check the rib type roof roll forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
