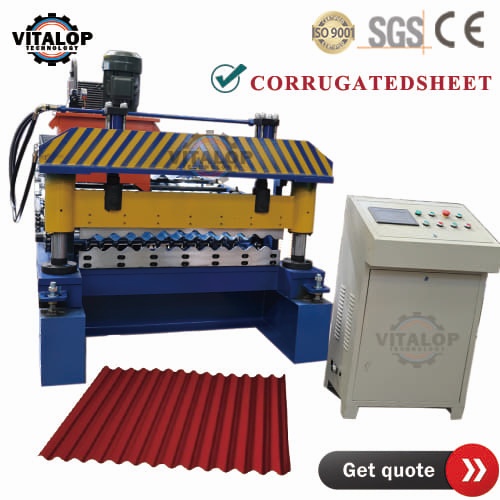

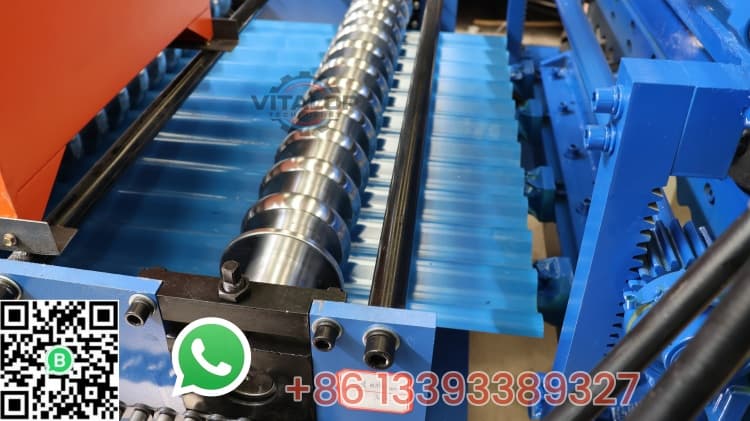

Corrugated sheet roll forming machine

Model:Color roof rib type roofing sheet machineCorrugated sheet roll forming machine

Develivery time:25-35 days

Min.Order Quantity:1 Set

Port:Tianjin,China
Payment Terms:30%T/T,70% T/T

Mob/Whatsapp:+86-13393389327

Email: jeff@vitalopmachinery.com

Description

Corrugated sheet roll forming machine

Corrugated sheet roll forming machineWe can customize the equipment according to your needs

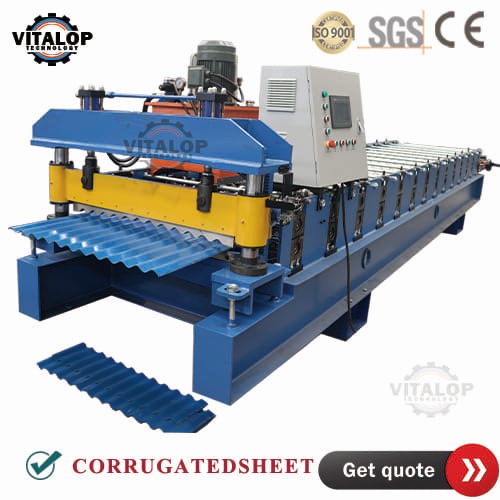

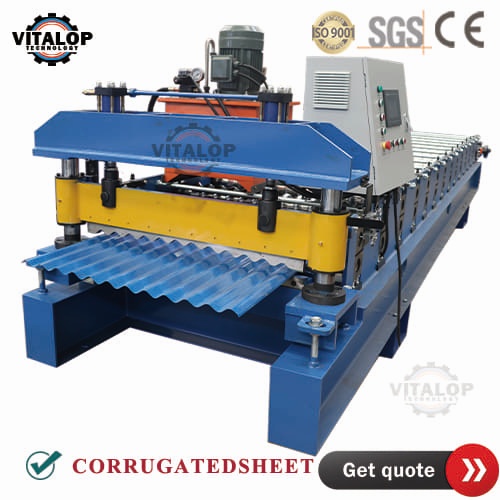

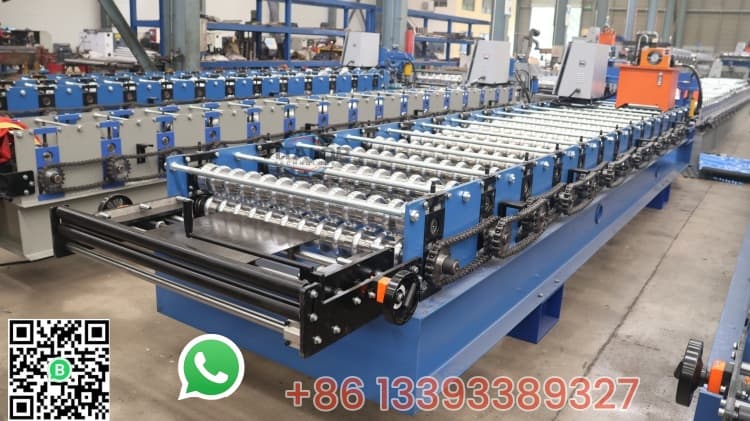

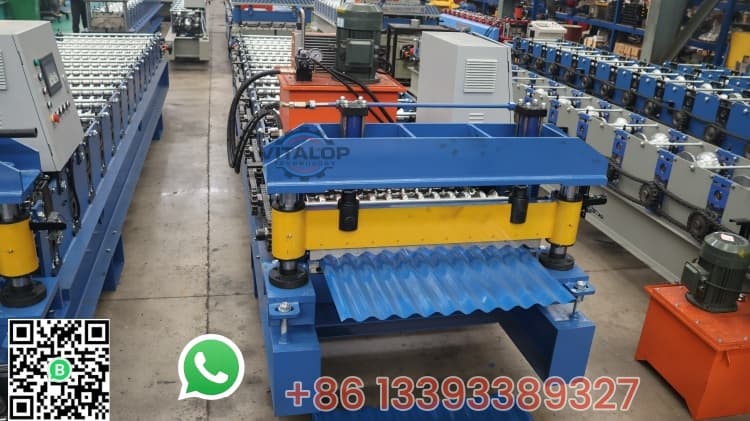

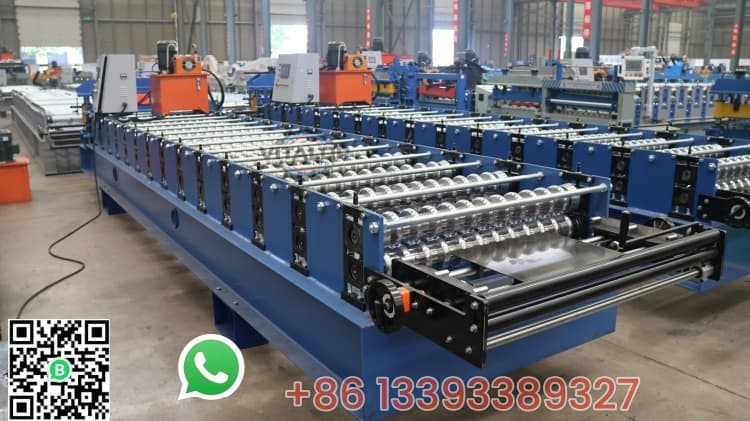

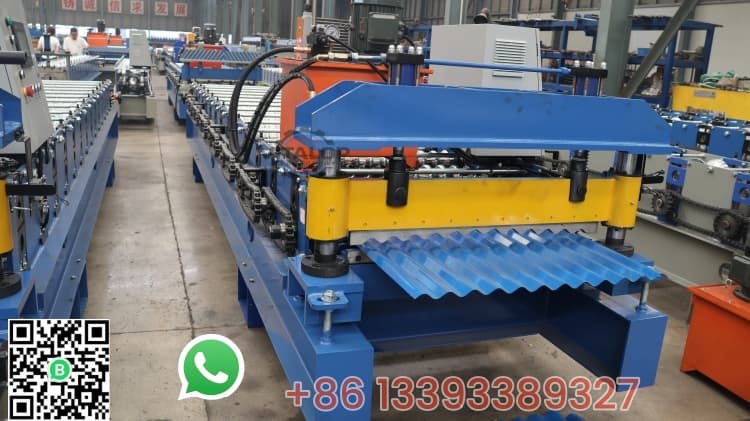

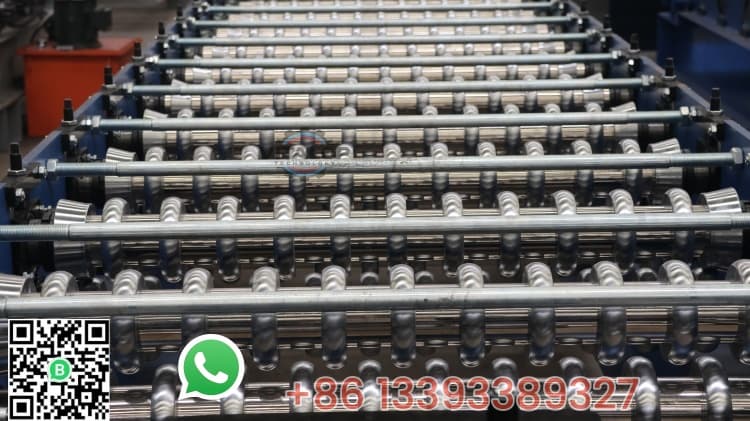

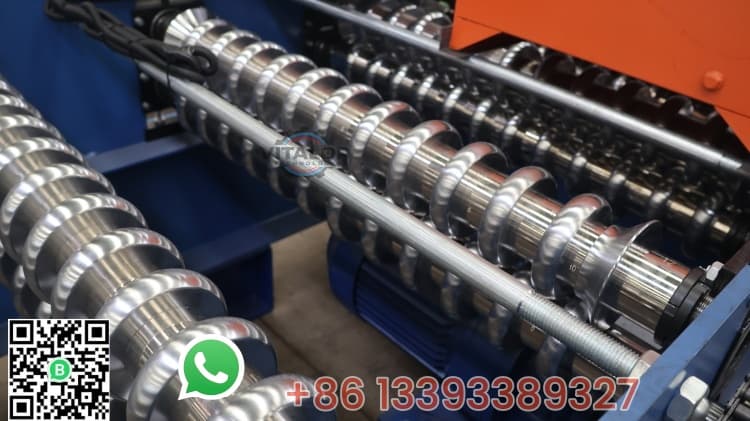

Corrugated sheet roll forming machine reference diagram:

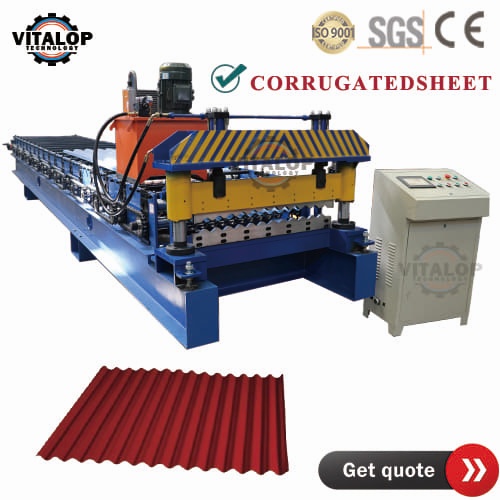

Corrugated sheet roll forming machine

Corrugated sheet roll forming machine equipment parameters:

Corrugated sheet roll forming machine
1 Support Structure 350H Beams (Q235 standard)
2 Middle Plate Thickness 18mm (Q235 standard)
3 Number Of Row Forming Rollers 18 Rows
4 Roller Material High Quality 45# Steel, Surface Hard Chromium Plating
5 Shaft Material High Quality 45# Steel
6 Shaft Diameter 70mm Solid Shaft
7 Cutting Blade Material Cr12 Mov (Quenching Treatment 58℃-60℃)
8 Control System Taiwan Delta PLC, Touch Screen And Frequency Converter
9 Work Speed 10-25m/min, Adjustable
10 Transmission By 1.2 inch chains
11 Main Motor Power 5.5KW Shanghai Lichao Brand

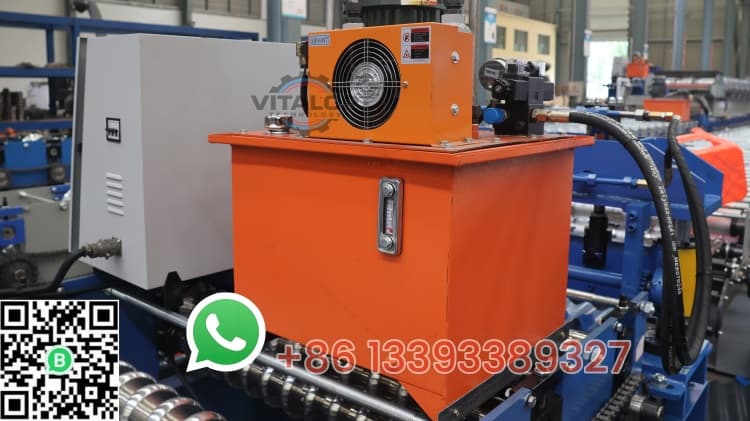

12 Hydraulic pump station 4Kw Shanghai Lichao Brand with cooling fan
13 Type of Cutting 4 Hydraulic Pillar Cutting
14 Cutting Tolerance ±1mm
15 Voltage 380V/50HZ/3Phases Or Customized

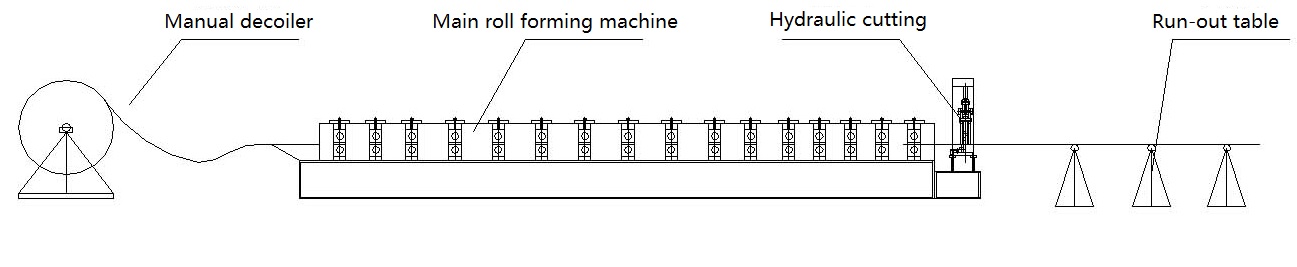

Corrugated sheet roll forming machine operation process:

Corrugated sheet roll forming machine operation process

If you have any needs for our corrugated sheet roll forming machine. Please not hesitate to contact with us!! We can offer you good quality roof sheet making machines at reasonable price!!!

Installation and training:
a.If buyers visit our factory and check the rib type roof roll forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
