Double layer deck roll forming machine
Model:
Develivery time:25-35 days
Min.Order Quantity:1 Set
Port:Tianjin,China
Payment Terms:30%T/T,70% T/T
Email: jeff@vitalopmachinery.com
- Description
- Inquiry
Description
Double layer deck roll forming machine

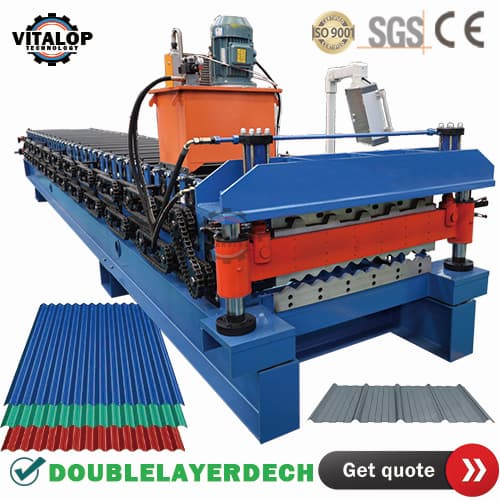

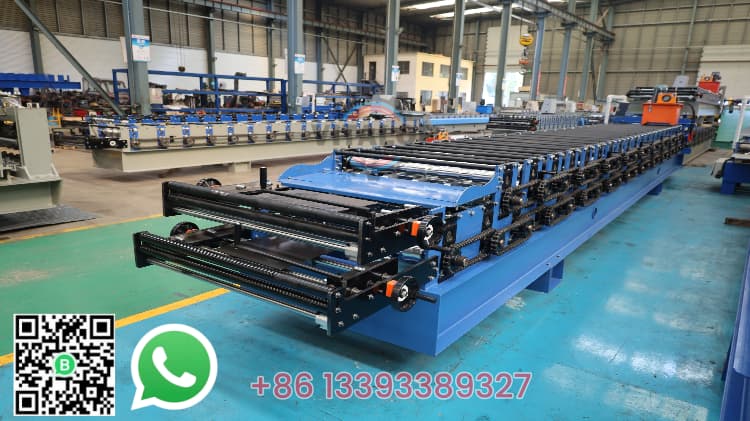

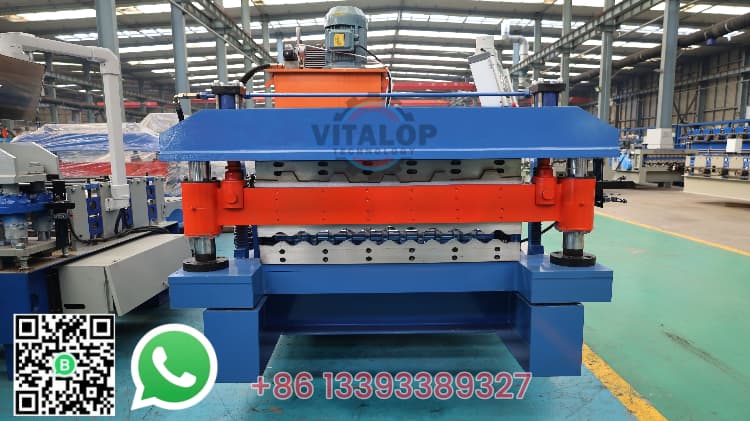

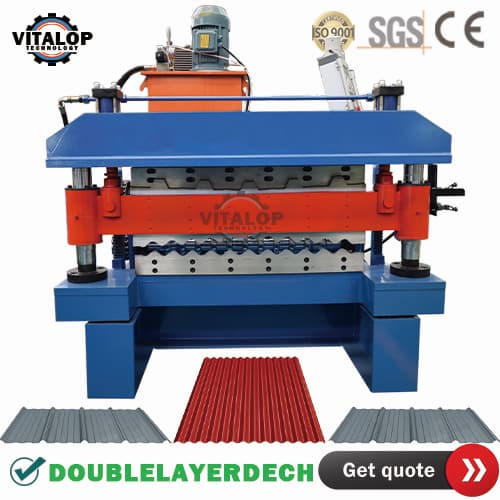

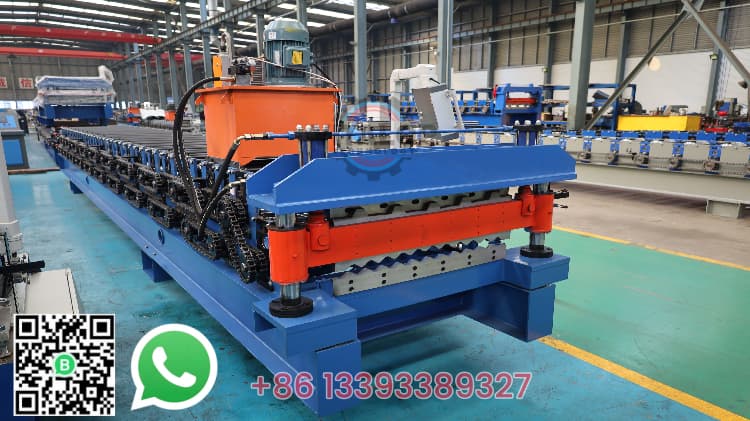

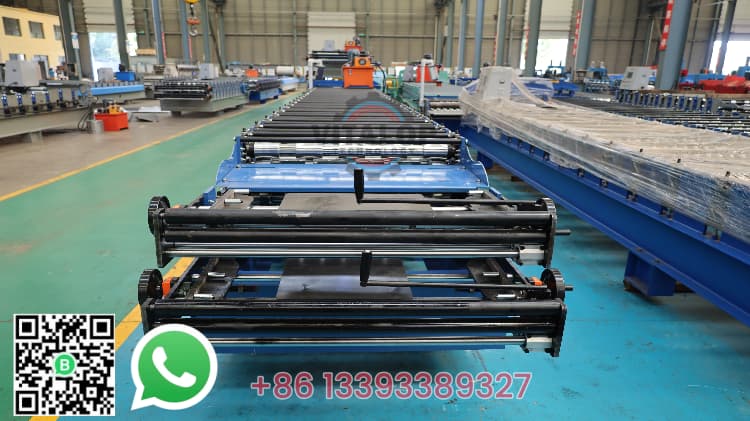

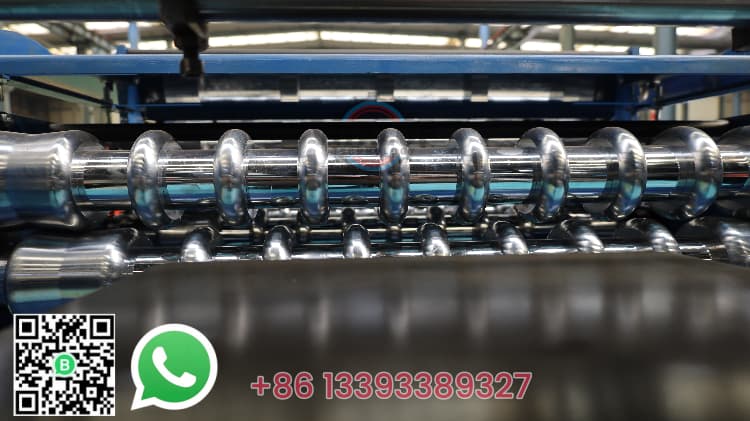

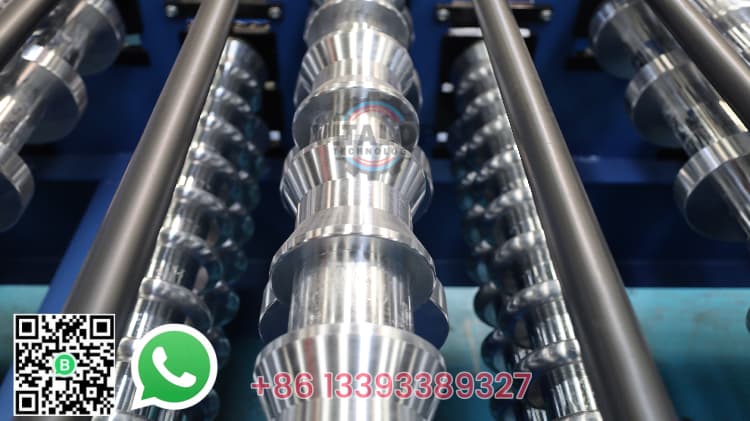

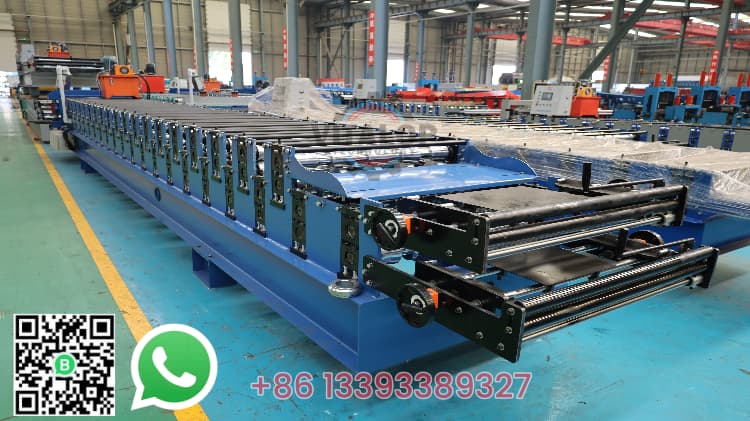

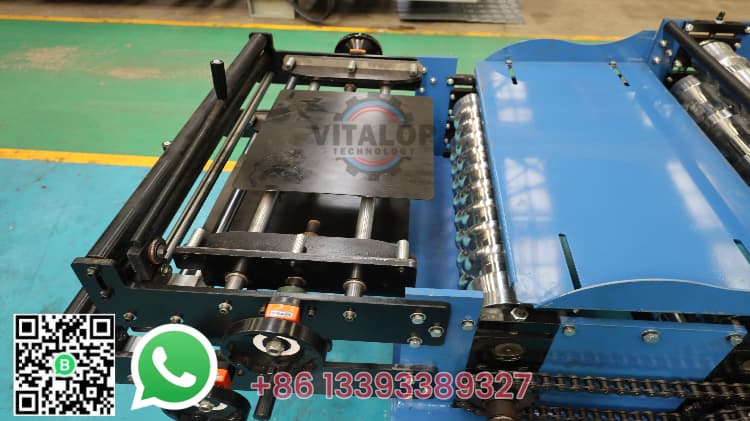

Double layer deck roll forming machine reference image:
|
Double layer deck roll forming machine specification: |
||
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 13+14Rows |
| 3 | Dimensions | 6.4*1.55*1.8m |
| 4 | Motor Power | 4Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4500kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
Packing & Sea shipping :
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
—4.loaded into 20 or 40 feet container.
We can paint machine to different colors according to client requirements.
