Double layer roll forming machine

Description

Double layer roll forming machine

      Double layer roll forming  machines are essential in the construction industry for producing durable and aesthetically uniform roofing and wall panels for industrial and civil buildings like factories, warehouses, gymnasiums, and homes.

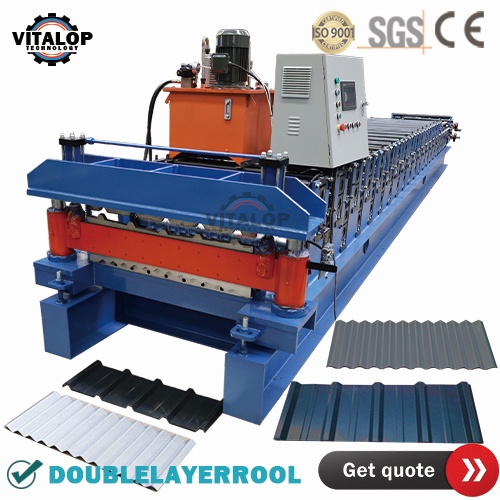

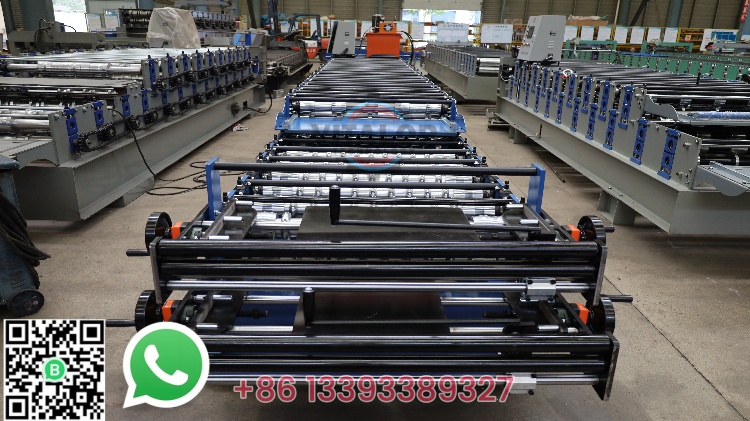

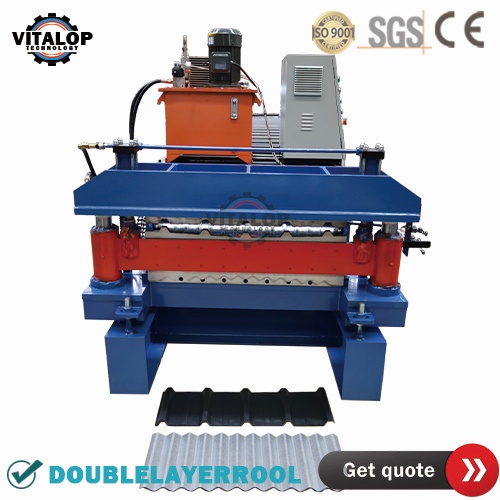

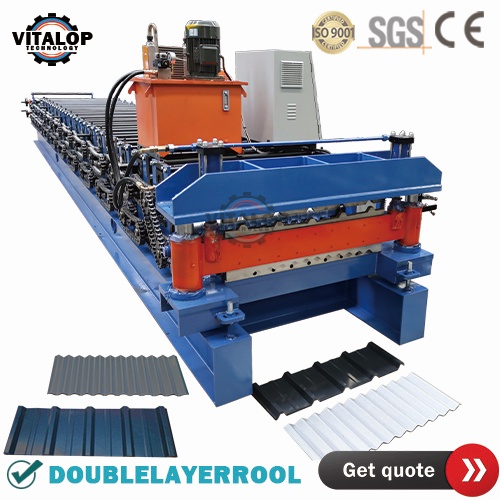

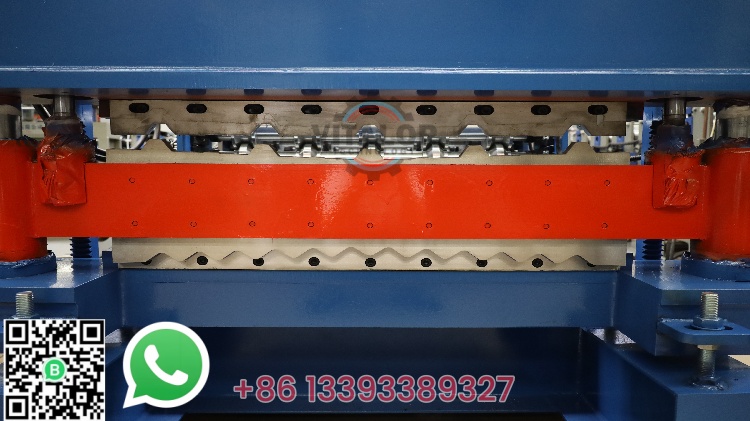

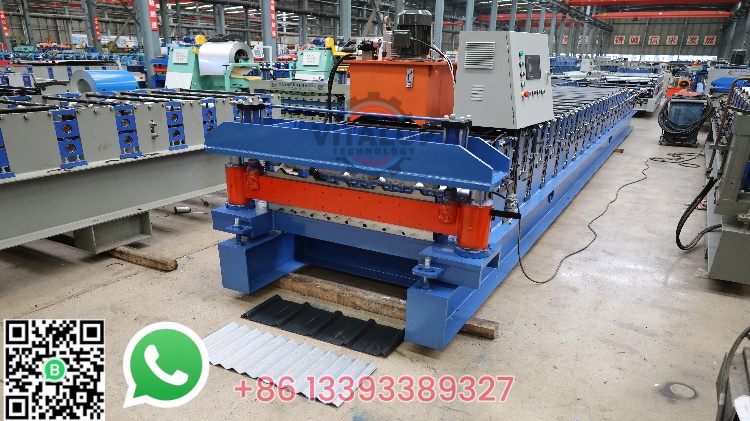

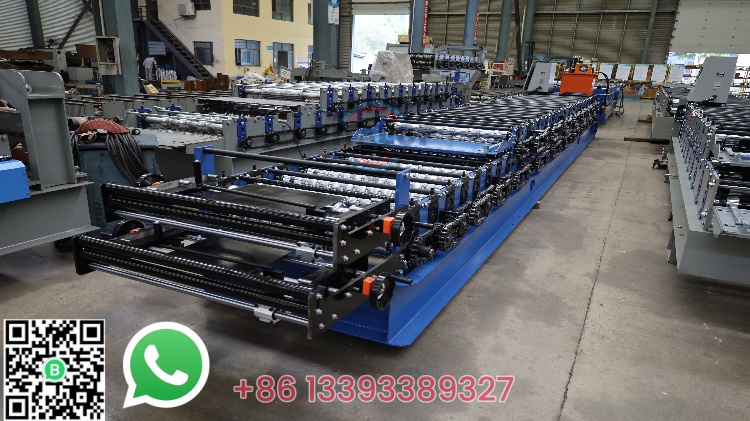

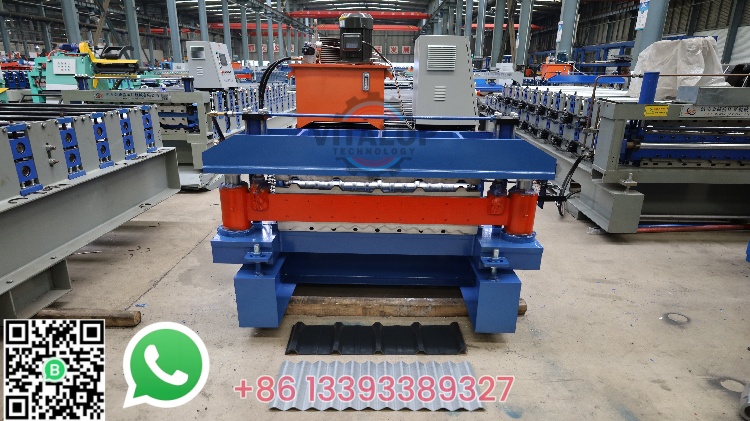

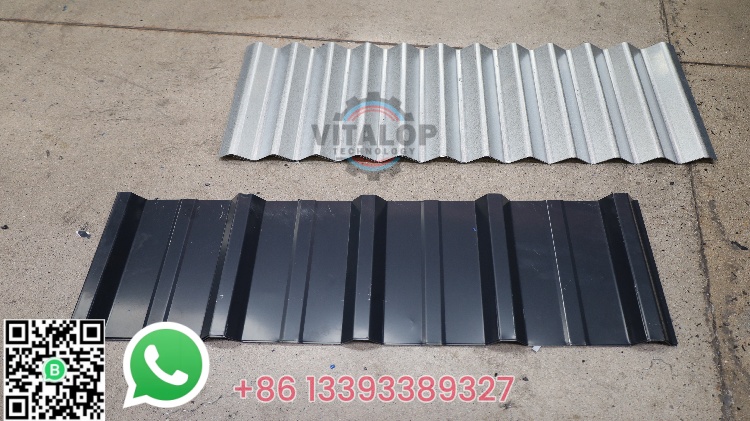

reference image:

Double layer roll forming machine process flow:



Double layer roll forming machine specification:

Double layer roll forming machine
1	Suitable to process	Color alu-zinc steel coil

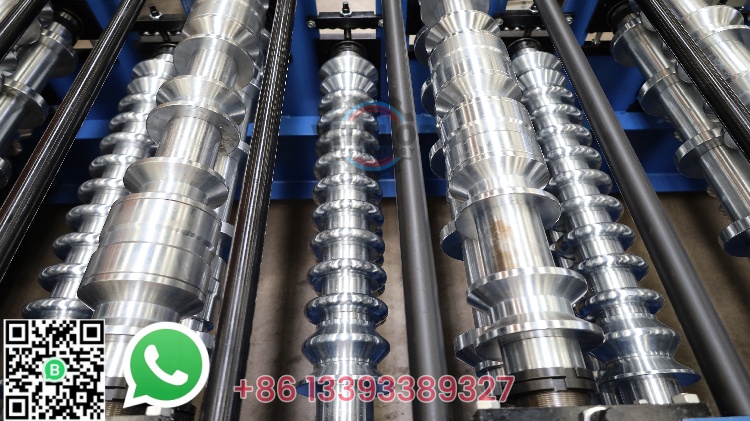

2	Roller	840:13 Rows 836:13 Rows
3	Dimensions	6.5*1.6*1.7m
4	Motor Power	5.5Kw
5	Pump Station Motor	4Kw.Lichao Brand
6	Thickness of the plate	0.3-0.8mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ70mm
10	Weight	About 4500kgs
11	Main structure of the machine	350H beams
12	Processing precision	Within 1.0mm
13	Side panel of machine	16mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer’s need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Motor driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm



Installation and training:
a .If buyers visit our factory and check the rib type roof roll forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
