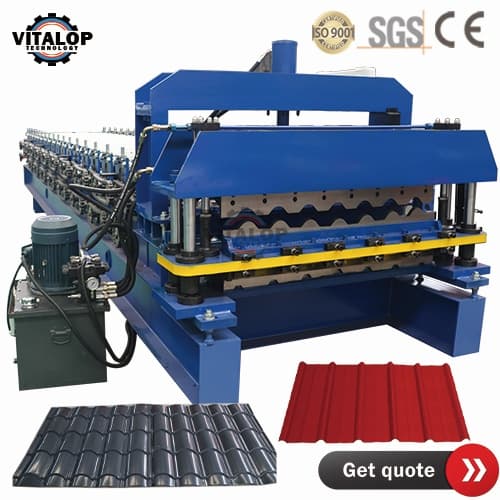

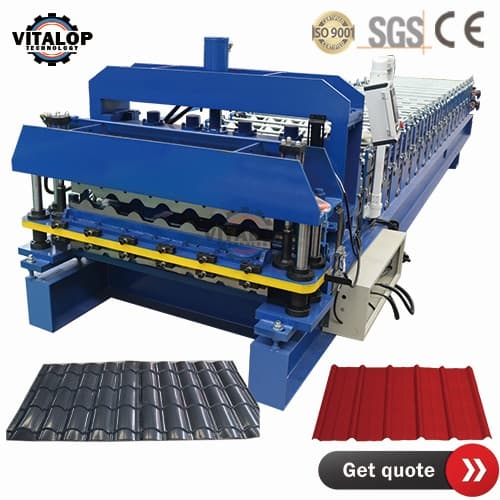

Glazed roofing tile roll forming machine

Glazed tile roll forming machine Glazed tile roll forming machine

Model: rib ribtype roof
Min.Order Quantity:1 Set
Port:Tianjin,China
Payment Terms:30%T/T,70% T/T

Model:Color roof rib type roofing sheet machine

Develivery time:25-35 days

Mob/Whatsapp:+86-13393389327

Email: jeff@vitalopmachinery.com

Category: Tags: , , ,

Description

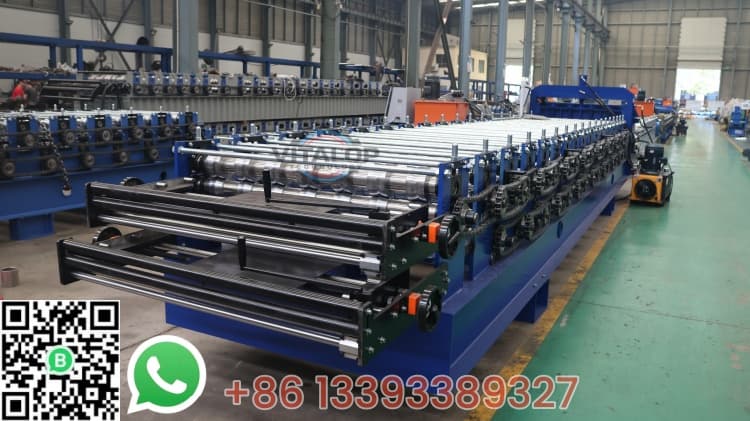

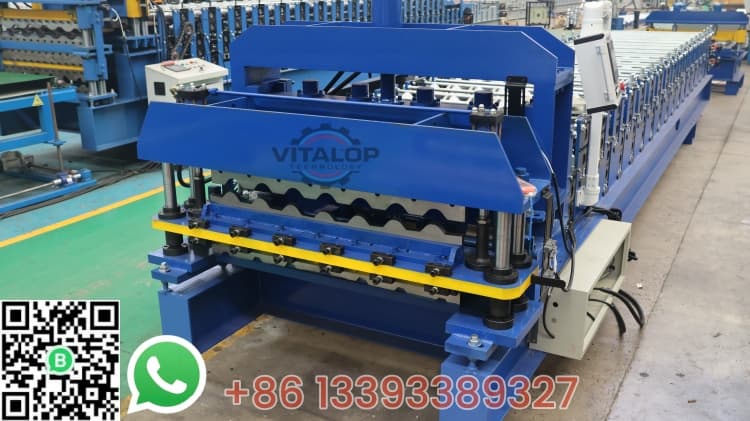

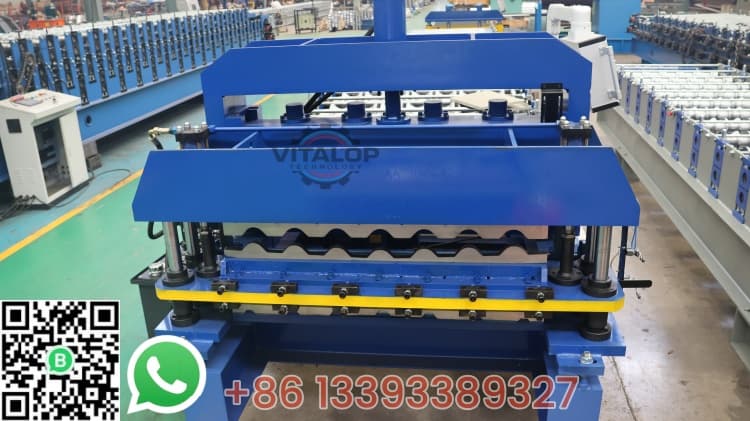

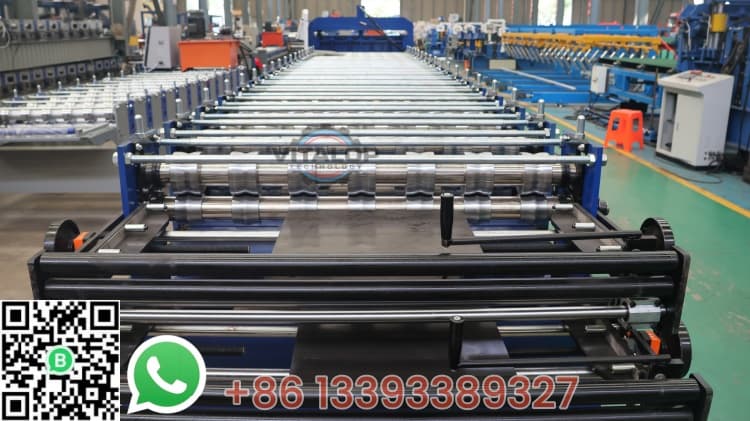

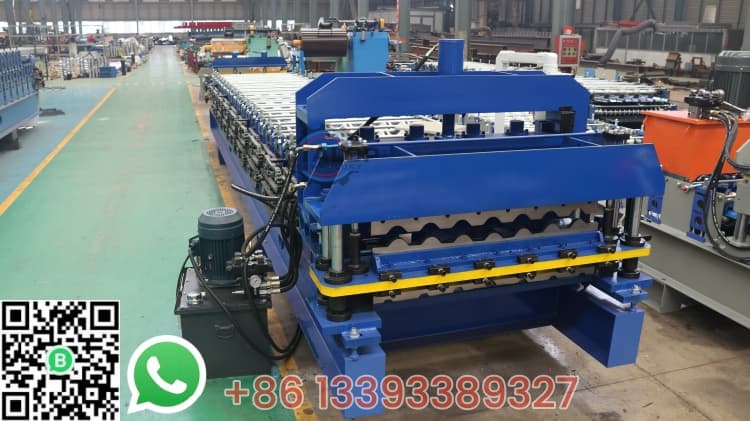

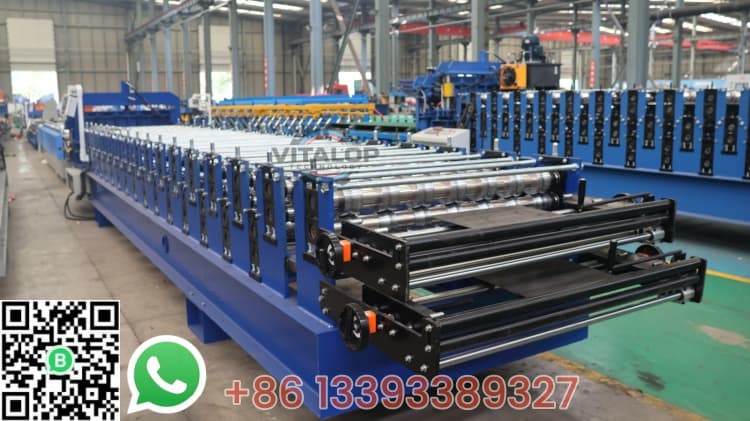

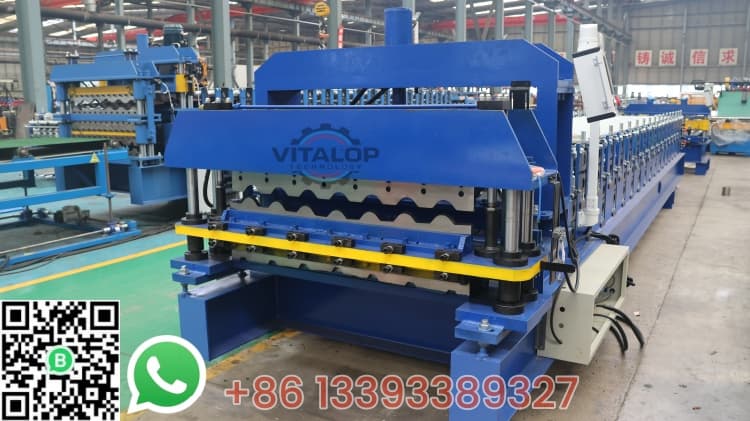

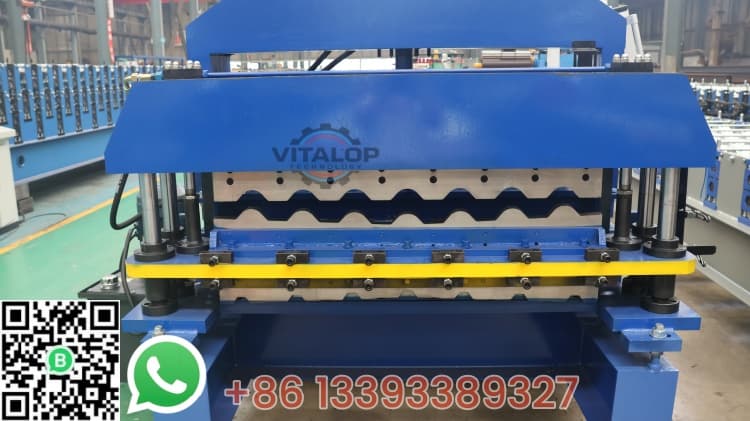

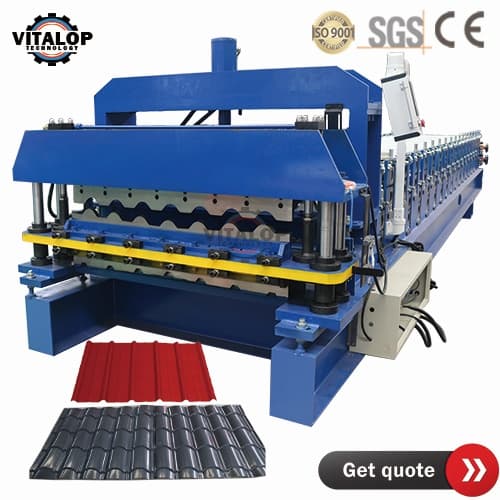

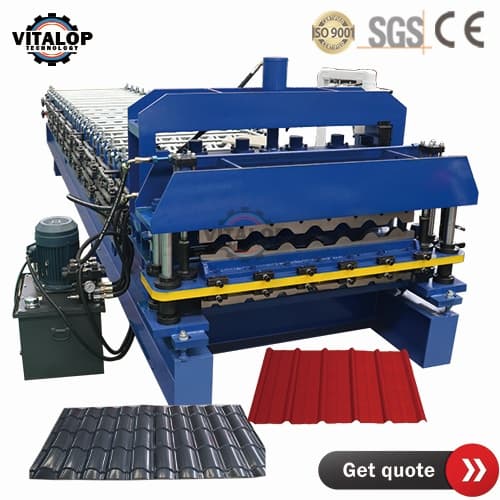

Reference image of glazed tile roll forming machine：

glazed roofing tile roll forming machine
Equipment parameters：
1 Support Structure 350H Beams (Q235 standard)
2 Middle Plate Thickness 18mm (Q235 standard)
3 Number Of Row Forming Rollers 15 Rows
4 Roller Material High Quality 45# Steel, Surface Hard Chromium Plating
5 Shaft Material High Quality 45# Steel
6 Shaft Diameter 70mm Solid Shaft
7 Cutting Blade Material Cr12 Mov (Quenching Treatment 58℃-60℃)
8 Control System Taiwan Delta PLC, Touch Screen And Frequency Converter
9 Work Speed 10-25m/min, Adjustable
10 Transmission By 1.2 inch chains
11 Main Motor Power 5.5KW
12 Hydraulic pump station 4Kw Shanghai Lichao Brand with cooling fan
13 Type of Cutting 4 Hydraulic Pillar Cutting
14 Cutting Tolerance ±1mm
15 Voltage 380V/50HZ/3Phases Or Customized

Installation and training:
a.If buyers visit our factory and check the rib type roof roll forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.

Packing & Sea shipping :

Machine is nude loaded into 20 or 40 feet container.

If you have any needs for our longspan ribtype roof sheet making machine. Please not hesitate to contact with us!! We can offer you good quality roof sheet making machines at reasonable price!!!
